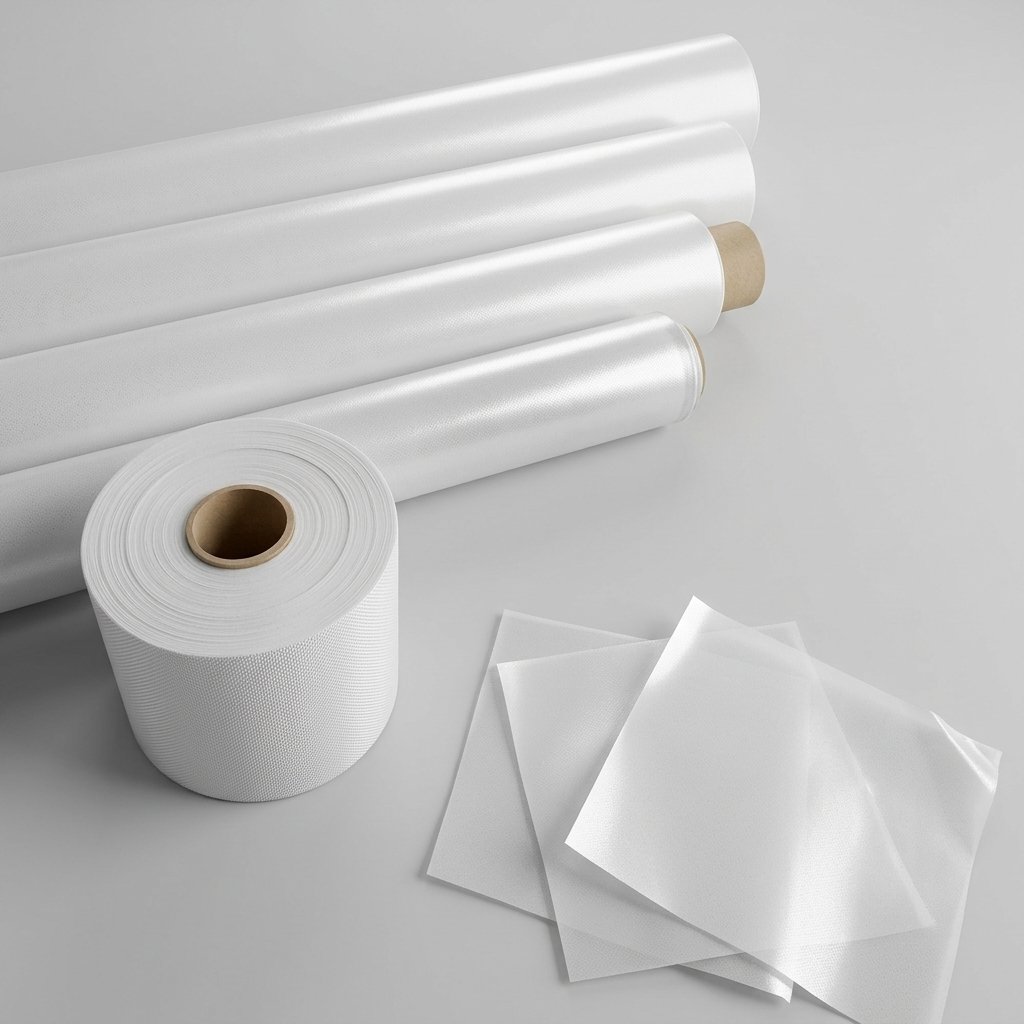

Dual-Compliant Food-Grade & Industrial Polyester Filter Mesh Solutions
In modern industrial processing and food-beverage manufacturing, purchasing managers often face the challenge of sourcing filtration media that combine heavy-duty mechanical strength with strict hygienic compliance. Our Dual-Compliant Food-Grade & Industrial Polyester Filter Mesh is engineered from 100% virgin polyethylene terephthalate (PET) monofilament resin. It delivers an uncompromising combination of high mechanical tensile strength, chemical stability, and certified safety for direct contact with consumables.
Core Dual-Safety & Durability Advantages:
Manufactured in ISO-certified cleanroom environments, our filter meshes strictly adhere to FDA 21 CFR 177.1630 and EU Directive 10/2011 standards. Thermally set and ultrasonic treated, these fabrics prevent fiber migration, resist operational wear, and ensure uncompromised purity during continuous liquid-solid separation and dry sifting.
Hygienic Safety Meets High Industrial Mechanical Strength
The single-filament monofilament design provides a completely smooth surface structure compared to traditional multifilament cloths. This smooth monofilament surface prevents particle traps, reduces filter cake adhesion, and simplifies washdown procedures—making it ideal for hygienic applications where cross-contamination must be prevented.
Simultaneously, the high elastic modulus of PET monofilament prevents mesh distortion under pressure drops, making it perfectly suited for high-stress industrial press filters, vibrating screens, and rotary vacuum filters. The fabric features excellent resistance against organic solvents, weak acids, and natural oils, retaining stable tensile properties across both wet and dry processing environments.
Technical Specifications Table (Food & Industrial Grade)
| Model Code | Mesh Count (T/inch) | Aperture Rating (µm) | Thread Diameter (µm) | Open Area (%) | Compliance Standard |
|---|---|---|---|---|---|
| PET-FD-10T | 25 Mesh (10T) | 1000 µm | 550 µm | 48% | FDA / EU / Industrial |
| PET-FD-36T | 90 Mesh (36T) | 230 µm | 120 µm | 43% | FDA / EU / Industrial |
| PET-FD-77T | 195 Mesh (77T) | 64 µm | 64 µm | 25% | FDA / EU / Industrial |
| PET-FD-120T | 305 Mesh (120T) | 37 µm | 48 µm | 20% | FDA / EU / Industrial |
| PET-FD-150T | 380 Mesh (150T) | 27 µm | 40 µm | 16% | FDA / EU / Industrial |
Dual Industry Applications & Versatile Uses
Our dual-compliant polyester filter mesh bridges the gap between commercial food manufacturing and demanding industrial applications:
- Food & Beverage Processing: Widely used in flour plansifters, starch separation, milk whey filtration, juice clarification, coffee sifting, and edible vegetable oil polishing.
- Pharmaceuticals & Biotechnology: Suitable for active ingredient separation, herbal extract sifting, and pre-filtration in sanitary environments.
- Industrial Liquid-Solid Separation: Deployed in municipal and industrial wastewater press filters, sludge dewatering belts, and cooling tower water circulation.
- Chemical & Mining Processing: Used for pigment sifting, resin filtration, mineral slurry dewatering, and catalyst recovery under weak acid conditions.
Cleanroom Packaging & Global Logistics Assurance
To preserve hygienic purity during overseas transit, all food-grade rolls are sealed in double-layer food-safe PE bags within a cleanroom environment before being loaded into heavy-duty corrugated cartons or fumigation-free wooden cases. We provide full traceability documents, including Lot-based Certificates of Analysis (CoA) and FDA compliance statements, with every shipment via Air, Sea, or Express freight.
Frequently Asked Questions (FAQ)
Q1: How do you certify that the polyester filter mesh is genuinely safe for direct food contact?
A: Our food-grade meshes are manufactured strictly from 100% virgin PET polymers without recycled additives or plasticizers. Every production batch undergoes independent laboratory testing to comply with FDA 21 CFR 177.1630 and EU Regulation 10/2011, and test certificates (CoA) are supplied with your order.
Q2: Can this mesh withstand both CIP (Clean-In-Place) food washdowns and industrial chemical cleaning?
A: Yes. The smooth monofilament structure tolerates standard CIP alkaline and mild acidic sanitizing agents up to 120°C. It is designed for repeated backwashing and ultrasonic cleaning without hydrolyzing or degrading fiber integrity.
Q3: Do you supply custom-fabricated filter bags, belts, or laser-cut shapes for food and industrial machines?
A: Yes. In addition to jumbo rolls (100cm–365cm wide), our fabrication factory produces ultrasonic-welded filter bags, endless filter press belts, disc filters, and precision laser-cut shapes tailored to your equipment drawings.
Q4: How can I request testing samples for FDA approval or trial run in my facility?
A: We provide free sample swatches (A4 size or 1-meter sample rolls) along with technical data sheets for pre-purchase evaluation. Contact our sales team today with your required micron size, and we will dispatch samples within 48 hours.
Upgrade Your Process with Certified Food-Grade & Industrial Mesh
Get factory-direct wholesale pricing, guaranteed FDA compliance, and tailored fabrication solutions. Contact our engineering consultants today for a comprehensive quote and free samples.
