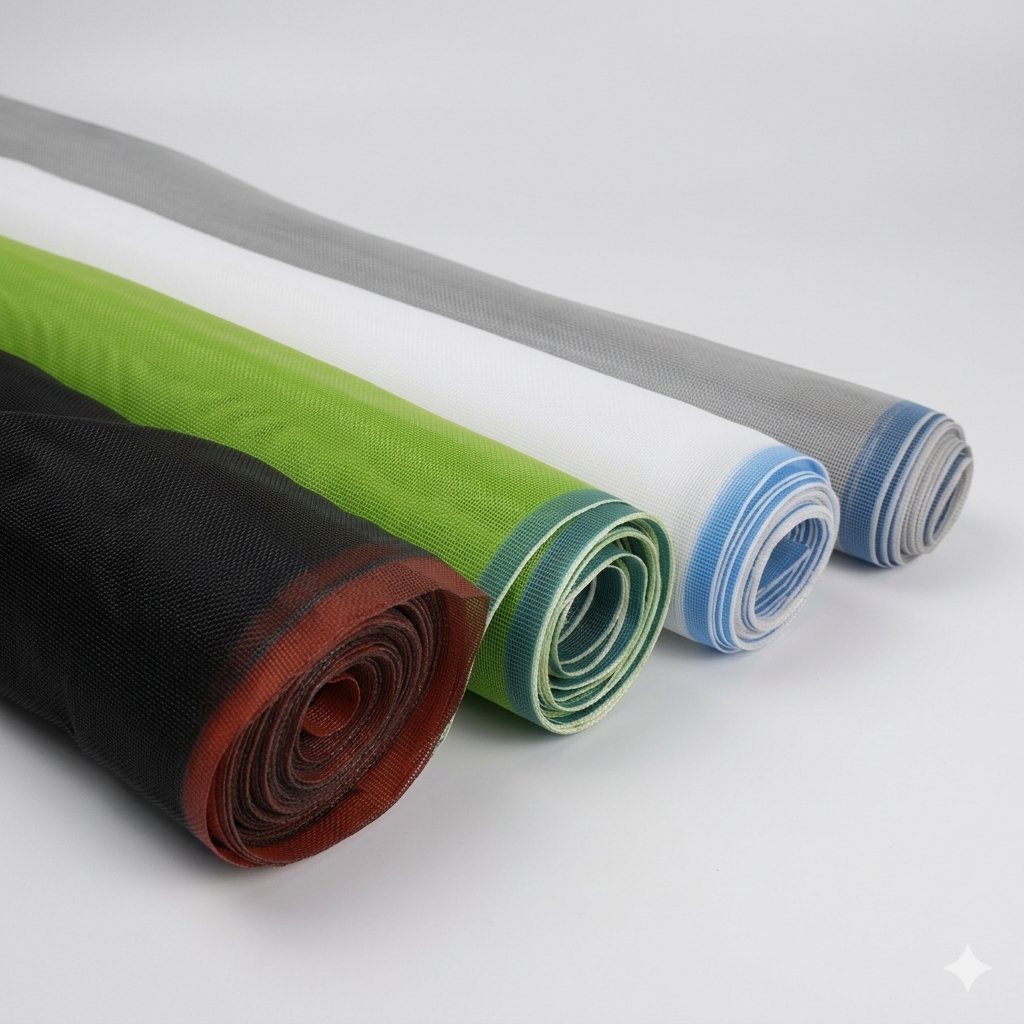

Industrial-Grade Nylon Fly Screen Netting for Window Systems and Greenhouse Enclosures
As a leading global B2B manufacturer specializing in high-performance polymer extrusion and structural plastic mesh weaving, we introduce our signature Nylon Fly Screen Netting range. Engineered precisely to meet demanding regional building codes and commercial agricultural standards, these high-tensile polyamide window screens offer reliable grid alignment and extended field longevity. For window screen wholesalers, door frame manufacturing lines, and large-scale agricultural infrastructure suppliers, our nylon screens present an excellent high-margin portfolio upgrade.
Key Engineering Advantages & Material Performance
- High-Tensile Elasticity & Tear Resistance: Unlike fragile fiberglass meshes that easily fracture or crease when folded, our premium polyamide insect screen mesh is woven from specialized flexible filaments. This polymer matrix delivers exceptional structural memory and elongation factors, handling heavy cross-winds, repetitive cleaning abrasion, and high installation pull force without grid distortion.
- Pneumatic Tension Lock-Weave Uniformity: Our factory operates high-speed automated weaving looms equipped with real-time electronic warp and weft tension regulators. Wires are crossed with continuous tension parameters, yielding a flawless square aperture alignment that successfully locks out aggressive flying vectors while preserving high daytime light transparency.
- UV-Stabilized Chemical Immunity: Formulated with architectural-grade UV inhibitors blended directly into the polyamide melt prior to extrusion, our netting resists intense solar degradation. The material matrix remains completely immune to chemical weathering, rendering it ideal for greenhouses requiring regular pesticide spraying or installations within humid tropical salt corridors.
The highly adaptable structural matrix of our nylon window screen roll enables smooth integration into residential timber frames, modern aluminum sliding tracks, structural screen doors, or greenhouse perimeter ventilation channels. With clean border trimming and stable plain-weave interlocking patterns, our plastic mesh fabric can be cleanly sheared into customized strip sizes without wire shedding or edge fraying.
Technical Specifications & Standard Ordering Dimensions
| Mesh Count (Per Inch) | Yarn/Wire Diameter (mm) | Theoretical Aperture (mm) | Standard In-Stock Colors & Application Profile |
|---|---|---|---|
| 18 × 16 Mesh (Standard Global) | 0.21 mm to 0.23 mm | 1.20 mm x 1.38 mm | Charcoal Black, Grey, White / Residential Window Framing |
| 24 × 24 Mesh (High Density) | 0.18 mm to 0.20 mm | 0.87 mm x 0.87 mm | Glossy White, Industrial Green / Food Packing, Small Fruit Fly Block |
| 30 × 30 Mesh (Micro Pest Control) | 0.15 mm to 0.18 mm | 0.65 mm x 0.65 mm Micro-Hole | Transparent White, Green / Blocks Thrips, Aphids & Whiteflies |
| Raw Polymer Chemistry | 100% Virgin Grade Polyamide (Nylon 6 / 66) | Zero recycled scraps blended formulation standard | Excellent elongation limits and melting point thresholds |
| Available Dimension Roll | Widths: 3ft (0.914m), 1.0m, 4ft (1.22m), 1.5m, 2.0m | Length: 30m (100ft) / 50m / 100m continuous coils | Custom slit width bands down to 100mm dynamic parameters |
Advanced Extrusion Lines & Rigorous Polymer Tension Testing
Secure Waterproof Export Packaging & Container Logistics Optimization
Frequently Asked Questions (FAQ)
Q1: What is your standard factory MOQ and estimated production lead time for nylon netting rolls?
A1: For our in-stock catalog configurations (such as standard 18×16 mesh or 24×24 mesh rolls in 1.0m/1.2m widths), the minimum wholesale order quantity is 50 rolls. For non-standard roll widths, custom high-density configurations (like 30×30 mesh white nets), or specialized roll length conversions, our MOQ is 150 rolls per individual specification. Standard container orders clear production within 20 to 30 days.
Q2: What is the practical material advantage of nylon (polyamide) netting over fiberglass or polyethylene (PE) screens?
A2: Fiberglass screens offer good initial stiffness but become brittle and crease or crack easily over time. Standard polyethylene (PE) nets are cheap but have lower tensile yield strength and degrade rapidly under harsh sunlight. Our 100% virgin polyamide (nylon) netting combines high tensile elasticity with premium structural memory. It stretches under load without tearing, resists heavy friction scrubbing, and delivers up to twice the functional outdoor service lifespan of low-grade PE netting.
Q3: Will the nylon mesh edges fray or unravel when installers cut panels to custom sizes for window framing?
A3: No. Because our production lines use precision automated plain-weave interlocking matrices, the warp and weft intersections are held tightly under mechanical friction. Contractors and window frame assemblers can slice the material cleanly using utility knives or shears at any custom coordinate without triggering loose strand shedding or structural border fraying.
Q4: Do you support contract OEM private-label conversions and customized graphics packaging for building material distributors?
A4: Yes, absolutely. We work as a primary OEM partner for numerous global hardware brands and commercial greenhouse suppliers. We can manufacture customized retail roll lengths (such as 10m or 15m DIY rolls), insert your full-color corporate branding cards beneath the protective shrink film wrap, print custom logos onto heavy-duty outbox cartons, and generate localized barcodes to match your inventory logistics software perfectly.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Nylon Fly Screen Netting procurement costs? Partner with us to enjoy premium heavy-duty, UV-stabilized, and high-tensile strength quality compliant with international residential window screening, insect control, and horticultural netting standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ) to maximize your inventory budget.
- 100% Free Samples: Quality, mesh density accuracy (mesh count & aperture size), monofilament wire diameter, color fastness, and tensile elongation testing samples available for your local hardware distribution, window and door manufacturing, or agricultural supply verification.
- Guaranteed Fast Lead Time: Advanced automated high-speed nylon weaving looms, heat-setting stabilization, precision slitting, and high-capacity roll winding lines ensure prompt manufacturing and on-time shipment of your Nylon Fly Screen Netting orders.
- Customized Packaging: Marine-grade moisture-proof and puncture-resistant dual packing with heavy-duty hard paper cores, protective PE plastic shrink wrap, and reinforced corrugated cartons or wooden crates to prevent transit roll deformation, mesh distortion, and surface fraying during long-distance ocean transit.
