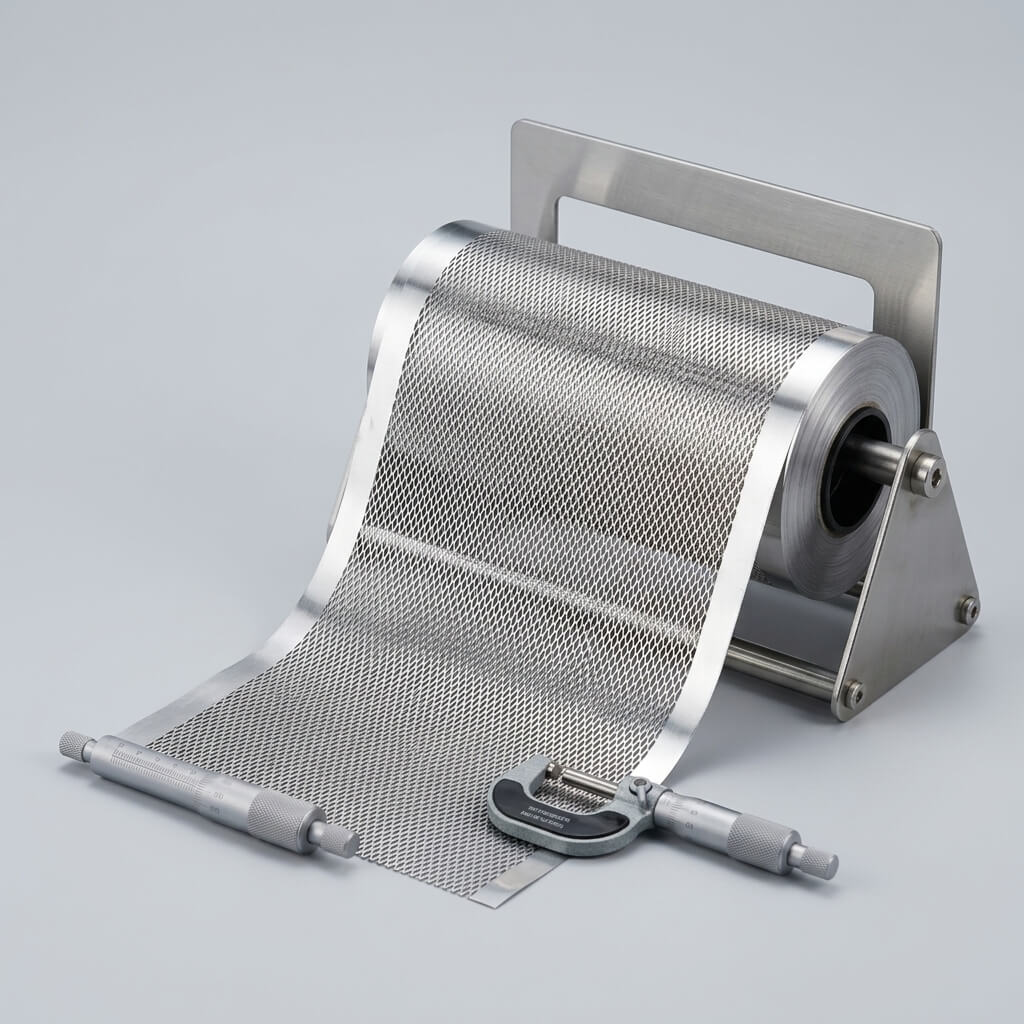

High-Precision Micro Hole Expanded Metal Foil
The Micro Hole Expanded Metal Foil represents the absolute pinnacle of cross-industry micro-mesh engineering. Unlike standard industrial expanded sheets, this ultra-thin mesh begins as a high-purity, solid metal foil. Utilizing micro-precision reciprocating knives and high-frequency automated tension tracking, the solid foil is uniformly slit and expanded into micro-diamond arrays. Because the production method relies on mechanical stretching rather than chemical etching or mechanical weaving, there is zero material wastage. The resulting mesh retains the uncompromised molecular and mechanical profile of the parent material, ensuring 100% linear electrical and thermal distribution across the entire surface profile.
Engineering Excellence of Our Micro-Expanded Foils
Our micro-hole processing lines operate under strict cleanroom parameters to eliminate surface contaminants, oils, and structural stress variances. Core advantages include:
- Unbroken Electrical Conductivity: The structural joints (bonds) are completely continuous and are not welded or interwoven. This creates a zero-resistance path, maximizing electron transfer efficiency for electrochemical cell matrices.
- Enhanced Surface Area & Mechanical Grip: The multi-angled micro-strands provide a distinct 3D micro-topography. This increases chemical contact area and offers unparalleled structural anchoring for chemical catalysts, active battery slurries, or polymer coatings.
- Extreme Material Uniformity: Advanced automated optical sorting ensures that micro-dimensions (SWD down to 0.3mm) suffer zero variance across continuous mile-long production master rolls.
- Zero-Unraveling Edge Profiles: The structural grid configuration ensures that when the mesh ribbon is slit down into narrow widths (e.g., 50mm battery bands), the borders remain structural, clean, and free of loose, stray wires.
Micro Foil Precision Specification Matrix
We configure multiple micro-aperture variations across diverse rare and high-purity metal substrates. Review our standard precision-engineered micro foil metrics below:
| Base Material Grade | Foil Thickness Profile | Micro SWO x LWO Dimensions | Strand Precision Width | Standard Supply Formats |
|---|---|---|---|---|
| Pure Nickel (Ni99.6% / N6) | 0.04 mm – 0.10 mm | 0.6 mm x 1.2 mm | 0.08 mm – 0.15 mm | Roll widths: 100mm to 400mm |
| Pure Titanium (Gr1, Gr2) | 0.05 mm – 0.12 mm | 0.8 mm x 1.6 mm | 0.10 mm – 0.18 mm | Rolls / Pre-cut Anode Plates |
| High Purity Copper (T2) | 0.03 mm – 0.08 mm | 0.5 mm x 1.0 mm | 0.05 mm – 0.12 mm | Continuous Lithium Battery Roll |
| Stainless Steel 316L / 304 | 0.05 mm – 0.20 mm | 1.0 mm x 2.0 mm | 0.12 mm – 0.25 mm | Rolls / Precision Die-Cut Discs |
| Pure Aluminum (Al99.5%) | 0.04 mm – 0.15 mm | 0.7 mm x 1.4 mm | 0.08 mm – 0.20 mm | Supercapacitor Grade Foil Rolls |
Advanced B2B Technology Applications
Due to its elite manufacturing tolerances and optimal current distribution profiles, our micron expanded metal mesh is an indispensable material for advanced industrial components:
- Next-Gen Battery Manufacturing: Premium micro copper and nickel foils serve as structural anodes/cathodes in advanced lithium-ion, solid-state, and capacitor energy storage devices, allowing maximum paste loading.
- EMI/RFI Shielding Architecture: Integrated into high-frequency aerospace bulkheads, military signal centers, and medical MRI rooms to establish highly effective faraday cages without obstructing acoustic ventilation.
- Hydrogen Electrolyzers & Fuel Cells: Precision titanium expanded foil mesh operates seamlessly within Proton Exchange Membrane (PEM) water electrolyzers, resisting brutal anodic oxidation environments.
Global Logistics, Cleanroom Packaging & Supply Reliability
As a Tier-1 manufacturing partner for global corporate supply networks, we treat micro foil protection with severe precision. Standard master rolls are wound over Heavy-Duty Reinforced Core Cylinders to eliminate core collapse during transport handling. Every micro foil roll is individually vacuum-sealed within dual-layer heavy industrial aluminum barrier bags infused with premium desiccant to prevent any micro-level atmospheric oxidation. The final shipment is secured within custom-built, fully suspension-supported plywood crates, completely isolating the fragile micro meshes from continuous cross-border transport vibrations.
Frequently Asked Questions (FAQ)
Q1: Are there residual punching oils left on the micro foil surface after the expansion process?
A1: No. For clean energy applications like battery electrode manufacturing and fuel cell layers, chemical purity is critical. All our micro expanded foils undergo an automated multi-stage inline ultrasonic cleaning process immediately after the flattening station. This successfully removes 100% of all processing lubricants, delivering an oil-free, bright, and completely dry surface state that ensures exceptional adhesion with active chemical slurries.
Q2: What is the narrowest width you can reliably achieve via precision slitting without mesh tearing?
A2: Our specialized secondary slit-coiling lines utilize high-rigidity tungsten steel rotary blades paired with active tension tracking. For ultra-thin micro copper or nickel meshes, we can reliably slit the continuous master rolls into thin ribbons as narrow as 15mm with a tolerance of ±0.1mm. The blade edges are carefully tuned to avoid burrs, ensuring the micro-diamond boundaries remain structural and intact.
Q3: Do you provide full material certification for high-purity nickel and titanium foils?
A3: Yes, absolutely. Every commercial B2B batch is delivered with full Mill Test Certificates (MTC) conforming to EN 10204 3.1 standards. Our quality assurance laboratory verifies the exact chemical elemental purity (e.g., Cu ≥ 99.95%, or Titanium Grade 1 content) alongside precise mechanical tensile strength data before clearing the cargo for final export packing.
Q4: What is the MOQ limit for custom micro-diamond mesh specifications?
A4: For standard stock trial setups—such as standard copper micro foil grids—our trial order MOQ begins at 50 square meters to easily facilitate client R&D testing. For fully customized mesh patterns or complex alloys like Titanium Gr2, our standard commercial production run MOQ is typically 200 square meters. We are glad to support custom cutting and rapid sampling phases for multi-national research facilities.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Stainless Steel Expanded Metal Mesh procurement costs? Partner with us to enjoy premium corrosion-resistant, high-strength, and perfectly flat quality compliant with ASTM A240 / ASTM F1267 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, mesh dimension accuracy, and material grade verification testing samples available for your local engineering project or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated heavy-duty expanding presses and precise sheet flattening/leveling lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade anti-scratch dual packing (protective foam/waterproof paper interlayer + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage and panel warping.
