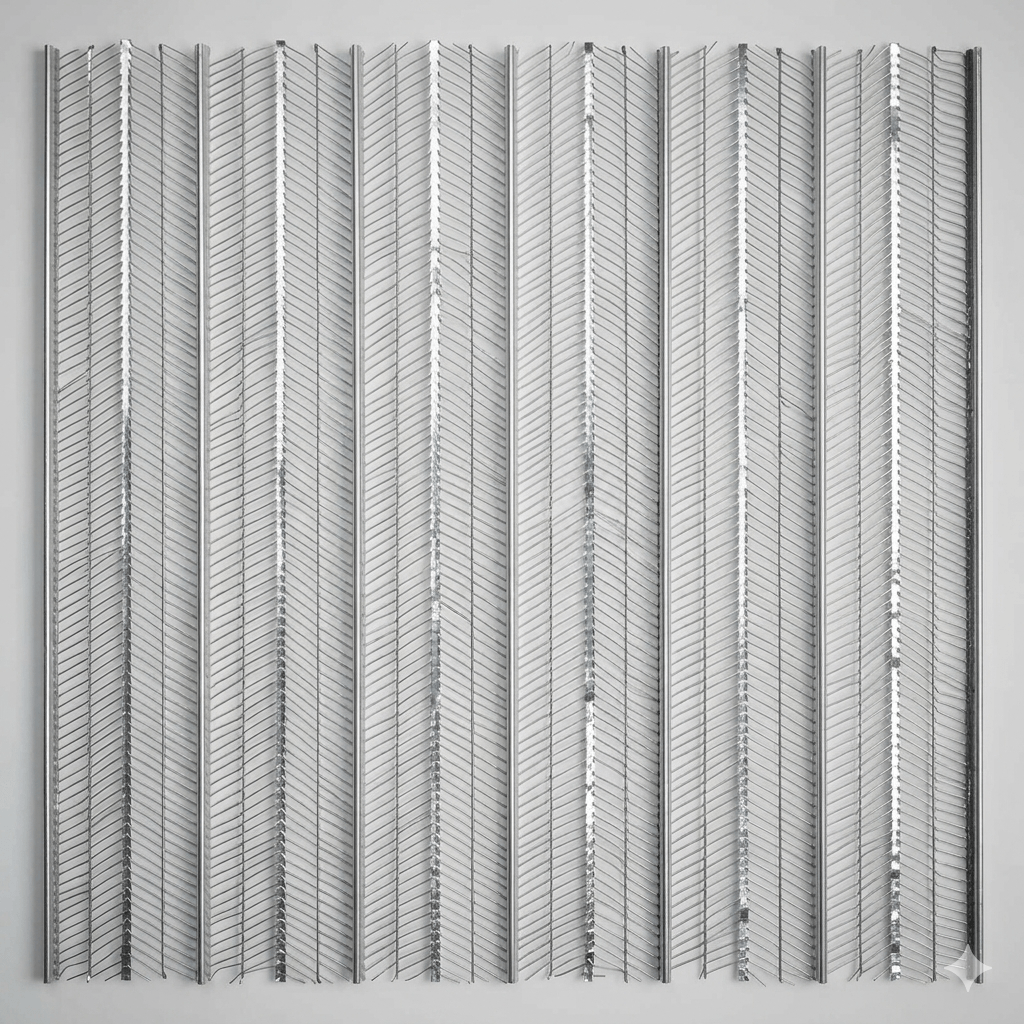

European Standard Flat-Ribbed Expanded Metal for Concrete Joint Shuttering
Our premium Flat-Ribbed Expanded Metal (SEBflex® equivalent series) represents the elite structural tier of leave-in-place mesh formwork inside the European construction sector. Fabricated through precision micro-slitting and expansion from prime galvanized steel sheets (verzinkt), this architectural lath incorporates structural parallel ribs that distribute directional shear load evenly. It allows fine concrete water milk to bleed out smoothly while securely retaining aggregates, creating a mechanically superior interlocking surface for subsequent concrete pours.
Why Global Distributors Import Our European-Spec Ribbed Expanded Metal
Strict Metric Sizing (250 x 60 cm): Perfectly tailored to meet standard European structural grid dimensions, providing exactly 1.5 m² of high-strength structural placement area per sheet.
Intuitive Color-Coded Coding System: Features high-visibility identification color marks (Yellow for 4mm flachgerippt / Black for 10mm mittelgerippt) to guarantee error-free installation on intense, fast-moving jobsites.
Industrial Euro-Pallet Logistics Compatibility: Packaged exactly at 20 sheets per pack (30 m²) and 30 packs per pallet footprint, completely optimizing forklift handling and container cube utilization across European distribution warehouses.
Advanced Mechanics of Flachgerippt & Mittelgerippt Profiles
The structural excellence of our Flat-Ribbed Expanded Metal lies in the seamless synergy between its rigid herringbone expanded mesh cells and continuous cold-formed reinforcement ribs. Standard diamond meshes frequently buckle when subjected to deep hydrostatic pressure profiles from fresh concrete. Our European-profile variations completely eliminate this flexural instability by matching specific steel gauges (0.25mm to 0.30mm) directly to targeted longitudinal rib depths.
When concrete paste fills the structural cavity, fine moisture bleeding occurs through the micro-apertures. This precise curing mechanics results in a highly keyed, roughened joint finish that eliminates the costly and hazardous requirements of chemical retarders, hand scabbing, or mechanical high-pressure jetting. Embedded permanently inside the monolith block, the high-tensile galvanized steel matrix provides exceptional secondary resistance against long-term dynamic structural shifts.
Technical Specifications & European Dimension Standards
| Artikel-Nr. (Item No.) | Bezeichnung (Description) | Ausführung / Stärke (Thickness) | Abmessungen L x H (Dimensions) | Rippenhöhe (Rib Height) | Weight kg/qm approx. | Verpackung (Packaging Standards) |
|---|---|---|---|---|---|---|
| 8SFL | Streckmetall flachgerippt | verzinkt / 0,25 mm | 250 x 60 cm = 1,5 m² | 4 mm | 0.875 | 1 Pack / 20 Tafeln = 30 m² 1 Palette / 30 Pack = 900 m² |
| 8SM3 | Streckmetall mittelgerippt | verzinkt / 0,30 mm | 250 x 60 cm = 1,5 m² | 10 mm | 1,173 | 1 Pack / 20 Tafeln = 30 m² 1 Palette / 30 Pack = 900 m² |
| 8SM5 | Streckmetall mittelgerippt | verzinkt / 0,50 mm | 250 x 60 cm = 1,5 m² | 10 mm | 1,873 | 1 Pack / 20 Tafeln = 30 m² 1 Palette / 30 Pack = 900 m² |
Primary Architectural & Civil Engineering Applications
- Industrial Foundations (Bodenplatten): Provides stable stop-end shuttering barriers for ultra-thick multi-phase warehouse concrete slabs.
- Waterproof Working Joints (Arbeitsfugen): Integrates perfectly alongside rubber waterstops (Fugenband) inside concrete walls to provide comprehensive leakage protection.
- Subway & Civil Infrastructure: Acts as continuous support mesh over curved vault linings and underground parking structure segment boundaries.
- Heavy Stucco & Plaster Carrier: The 4mm flachgerippt mesh provides an ironclad mechanical bond key layer for high-thickness fireproofing coatings.
Export Logistics & Palletization Standards
Operating a specialized manufacturing facility with decades of dedicated international export expertise, we guarantee that our logistics architecture is tightly aligned with professional supply chain workflows. Our Flat-Ribbed Expanded Metal sheets are compactly nested together under high hydraulic tension to prevent shifting or physical cell distortion during transit. Packing configurations adhere strictly to the 20 sheets per pack and 30 packs per pallet breakdown layout, packing exactly 900 m² into a clean single pallet unit footprint.
To eliminate rust degradation from ocean salt spray during extended multi-week freight voyages, each complete pallet block is fully sealed with thick multi-layer waterproof stretch wrap and reinforced with cardboard edge-shields. We offer flexible commercial trade operations across FOB, CFR, CIF, and direct door-to-door DDP arrangements, delivering a smooth B2B procurement experience right to your construction distribution centers.
Frequently Asked Questions (FAQ)
Q1: What are the main project advantages of utilizing 4mm Flat-Ribbed Expanded Metal over standard 21mm high rib lath?
A1: The 4mm flachgerippt expanded metal profile is designed for low-clearance or thin-slab applications where a bulky 21mm deep-rib structure would interfere with complex reinforcing rebar layouts. It creates a tightly bound concrete joint profile while occupying minimal cross-sectional space within the wall or foundation slab matrix.
Q2: What do the Yellow (gelb) and Black (schwarz) color markings signify on your production sheets?
A2: These marks adhere strictly to European standard color-coding for identification. The yellow markings identify our 4mm flat-ribbed model (0.25mm sheet thickness), whereas the black markings specify our heavier 10mm medium-ribbed variation (0.30mm sheet thickness). This system ensures site workers can quickly select and verify the correct product specification during installation.
Q3: How does your galvanized steel mesh perform when paired with PVC or steel waterstops (Fugenbänder)?
A3: It performs flawlessly. Our 250 x 60 cm sheets are easily cut, split, or tied around central wall waterstops. The expanded mesh securely contains the concrete slurry up to the waterstop edge without displacing or damaging the flexible barrier, ensuring an airtight, waterproof seal across the completed construction joint.
Q4: What is your standard lead time for manufacturing a wholesale order of 15 to 20 pallets (approx. 15,000 m²)?
A4: Because our factory runs high-speed continuous mesh production lines calibrated precisely for 4mm and 10mm European standards, we can fulfill an order of 15,000 m² within 10 to 14 working days from initial deposit clearance. Standard configurations are heavily stockpiled in our central warehouses for immediate port delivery.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Flat-Ribbed Expanded Metal procurement costs? Partner with us to enjoy premium bright, smooth-finish, and perfectly flat quality compliant with international structural and plastering reinforcement standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, dimensional flatness, and rib-rigidity testing samples available for your local architectural, lathing, or construction project and distribution verification.
- Guaranteed Fast Lead Time: Advanced automated heavy-duty expanding and 1/8″ flat-rib profiling lines ensure prompt manufacturing and on-time shipment of your flat-ribbed expanded metal..
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage, rib distortion, and bundle bending.
