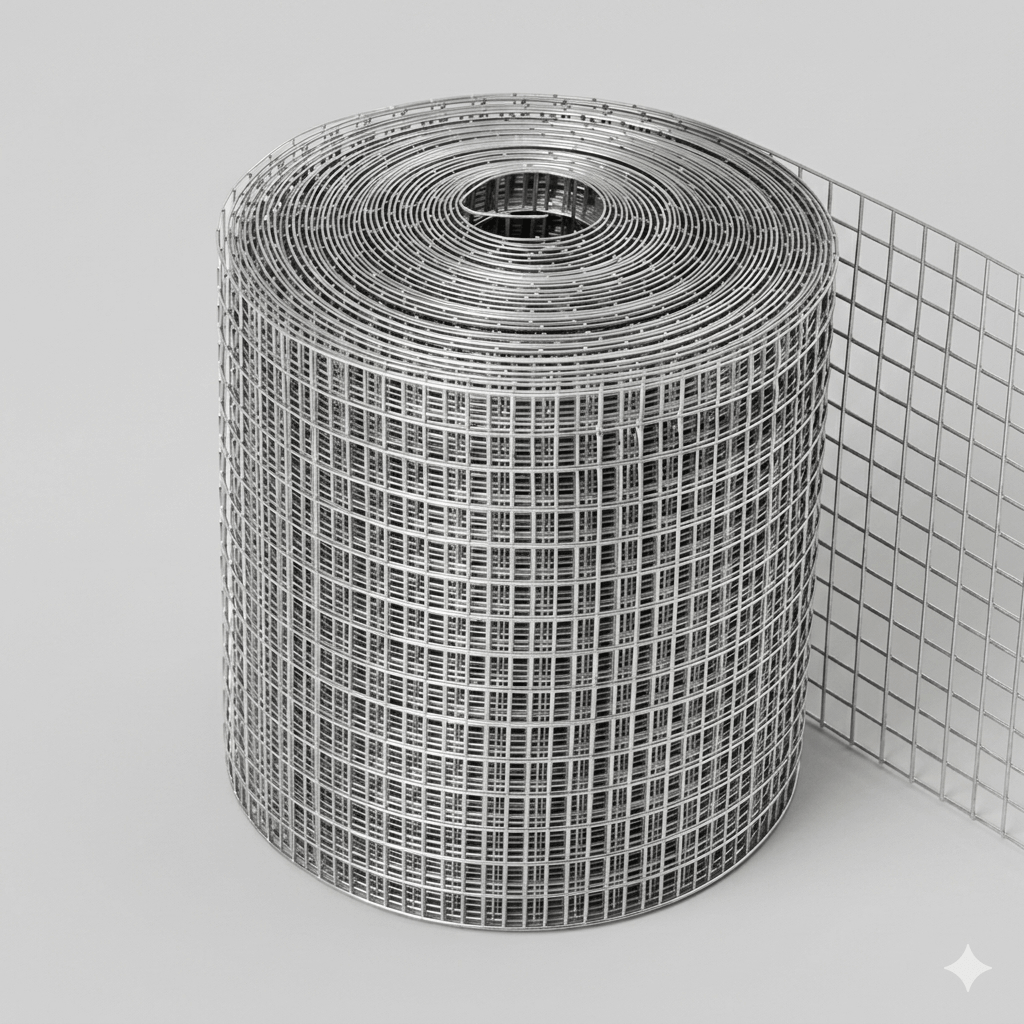

For international supply chains requiring a meticulous balance of aesthetic excellence, precision alignment, and strict cost controls, our factory-certified Electro Galvanized Welded Wire Mesh (EG) provides the ideal answer. Manufactured through an advanced cold-galvanization system, a uniform zinc coating is electrochemically bonded onto premium Q195 low carbon steel wires. This precise process guarantees an incredibly bright silver sheen that is highly favored for consumer-facing goods and refined commercial environments.
Our production layout incorporates modern automated computer-controlled resistance multi-spot welding lines. By systematically regulating the electrical current at each intersection, we achieve robust weld points without compromising the zinc matrix or warping the thin wire parameters. For massive B2B commercial orders, retail distribution networks, and hardware suppliers, this product provides an unassailable financial advantage, reducing raw material procurement outlays while delivering a highly marketable consumer aesthetic.
Key Product Features & Budgetary Advantages
- Stunning Mirror-Like Smoothness: The electro-chemical zinc deposition creates a highly lustrous, silver-bright metallic texture completely devoid of painful sharp burrs, zinc spikes, or localized surface roughness.
- Unbeatable Wholesale Cost Efficiency: Because the cold-galvanizing technique consumes less raw zinc metal while maximizing mass production speed, it provides an unbeatable price per roll for volume-centric markets.
- High-Precision CNC Dimensional Grid: Our high-frequency automated welding apparatus minimizes structural diagonal distortions, keeping every mesh opening perfectly square and true to target measurements.
- Excellent Secondary Fabrication Capability: The smooth, clean zinc layer offers an optimal substrate for secondary industrial processes, such as precise shearing, custom framing, or post-production PVC powder coatings.
Technical Specifications & Standard Dimensions Table
| Mesh Size (Inches) | Mesh Size (mm) | Wire Gauge (BWG) | Wire Diameter (mm) | Standard Roll Widths | Standard Roll Lengths | Zinc Coating Mass |
|---|---|---|---|---|---|---|
| 1/4″ x 1/4″ | 6.4mm x 6.4mm | 22, 23, 24 | 0.70mm – 0.55mm | 0.914m, 1.0m, 1.2m | 15m, 30m, 100′ | 10 – 15 g/m² (Smooth) |
| 1/2″ x 1/2″ | 12.7mm x 12.7mm | 18, 19, 20, 21, 22 | 1.22mm – 0.70mm | 0.914m, 1.0m, 1.2m, 1.5m | 30m, 50m, 100′ | 12 – 18 g/m² (Bright) |
| 3/4″ x 3/4″ | 19.0mm x 19.0mm | 16, 18, 19, 20 | 1.65mm – 0.89mm | 1.0m, 1.2m, 1.5m, 1.8m | 30m, 100′ | 15 – 20 g/m² |
| 1″ x 1″ | 25.4mm x 25.4mm | 14, 15, 16, 18, 20 | 2.11mm – 0.89mm | 1.0m, 1.2m, 1.5m, 1.8m, 2.0m | 30m, 45m, 50m | 15 – 25 g/m² Max |
| 2″ x 2″ | 50.8mm x 50.8mm | 14, 15, 16 | 2.11mm – 1.65mm | 1.0m, 1.2m, 1.5m, 2.0m | 30m, 50m | 15 – 25 g/m² |
Primary Commercial & Residential Applications
Because electro-galvanized meshes carry superior structural layout parameters and refined surface reflection, they are favored extensively inside controlled and commercial environments:
-
- Consumer and Supermarket Displays: Fabricated broadly into versatile commercial goods storage baskets, multi-tier supermarket gondola shelves, and retail pegboard display hooks.
- Refined Domestic Pet Enclosures: The premier selection for manufacturing domestic dog crates, indoor bird aviaries, and cat containment enclosures where sharp surface zinc knots could injure valuable pets.
- Architectural Plaster and Stucco Support: Used inside modern building projects as lightweight internal wall plaster reinforcement layers to prevent compound fracturing and ceiling micro-cracks.
- Safety Guarding and Machine Enclosures: Used as precise fan guard meshes, protective grids for indoor electronic distributions, and lightweight partitions for clean automated sorting centers.
Export Packaging Protocol & Secure Containerized Logistics
We deploy a precise industrial packaging framework designed specifically to guard the sleek metallic silver aesthetic of EG mesh throughout long international transits:
- Aesthetic Preservation Barrier: Wrapped thoroughly in multi-layer heavy waterproof kraft paper to block ambient maritime relative humidity and atmospheric vapor elements.
- Secure Mechanical Enclosure: Encased completely in heavy-duty polyethylene stretch-wrap to avoid direct friction between adjacent mesh roll matrices.
- Retail-Ready Custom Labelling: Fully supportive of custom private label brand insertions and tailored barcodes, allowing seamless transit from your import container directly onto regional retail shelf racks.
Frequently Asked Questions (FAQ)
Q1: What are the primary advantages of Electro Galvanized (EG) wire mesh over Hot-Dipped variations?
A1: Electro-galvanized wire mesh offers two major competitive advantages: a vastly smoother, mirror-like aesthetic surface finish completely devoid of rough zinc burrs, and a significantly lower wholesale product cost. This combination makes it exceptionally lucrative for consumer fabrication markets where visual presentation and competitive retail pricing are top priorities.
Q2: Is Electro Galvanized welded mesh suitable for outdoor fencing installations?
A2: EG wire mesh is primarily optimized for indoor applications, dry storage settings, consumer shelving, and sub-surface building plastering. Because the zinc coating weight ranges between 10g/m² and 25g/m², prolonged direct exposure to heavy rain, marine salt spray, or acidic soils might induce surface oxidation over time. For heavy open-air fencing, we highly recommend selecting our Hot-Dipped Galvanized models instead.
Q3: Can your Electro Galvanized welded wire mesh be post-coated with PVC or powder finish?
A3: Yes, perfectly. Due to the ultra-flat, clean, and residue-free nature of our electro-chemical zinc layer, it acts as an exemplary foundation substrate for secondary coating pipelines. The lack of random zinc spikes ensures that post-applied polymer powders adhere with absolute uniformity, yielding premium-grade colored wire meshes without bubble defects.
Q4: What are your payment terms and delivery cycles for large volume wholesale orders?
A4: We standardly accommodate traditional B2B trading procedures including T/T deposits with balanced payments against Bill of Lading (B/L) copies, or irrevocable Letters of Credit (L/C) at sight. Our production capacity allows us to finalize a full 20-foot or 40-foot ocean freight container within 15 to 20 business days from the initial engineering verification clearance.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Electro Galvanized Welded Wire Mesh procurement costs? Partner with us to enjoy premium bright, smooth-finish, and uniform zinc-coated quality compliant with ASTM A641 / BS EN 10223 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and highly competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ).
- 100% Free Samples: Quality and weld-strength testing samples available for your local engineering project or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated multi-spot welding production lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with reinforced pallets to prevent transit damage.
