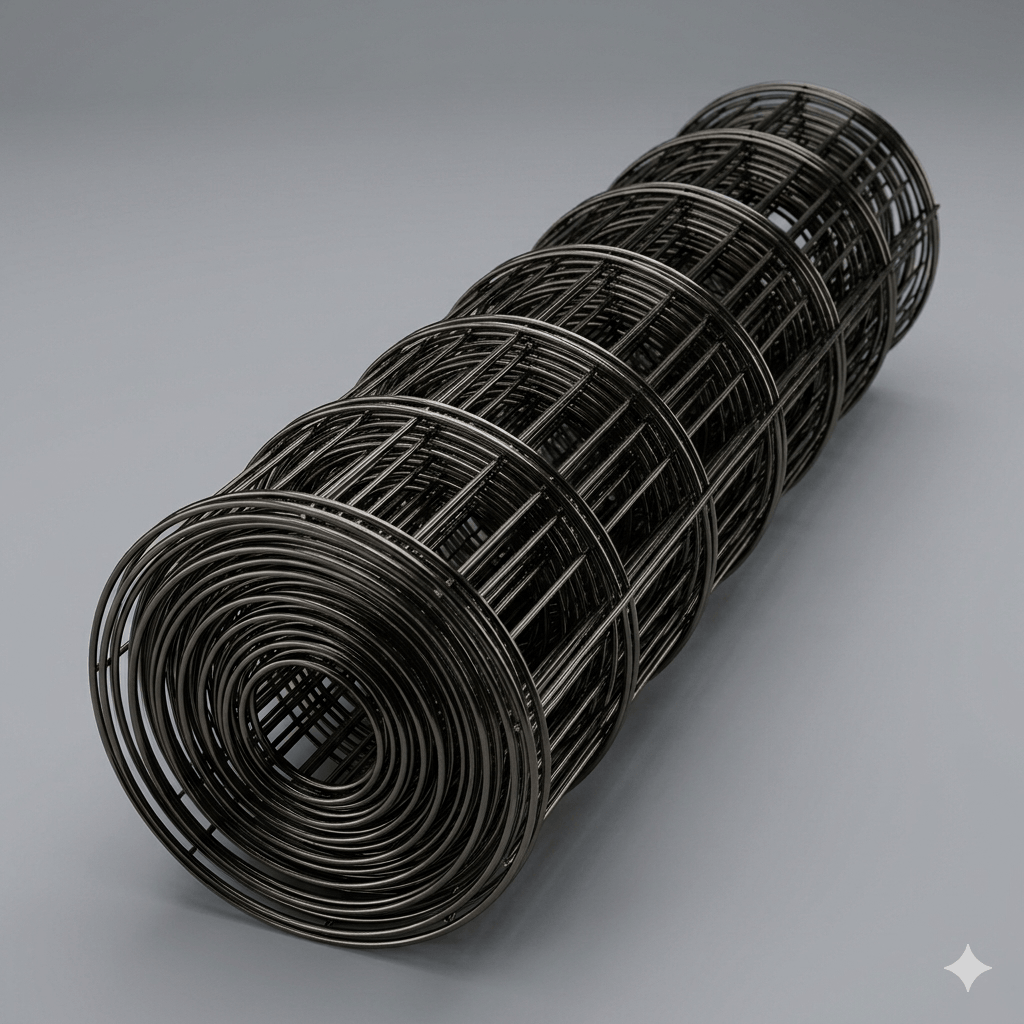

Industrial Grade Black Iron Welded Wire Mesh Wholesale
Our Black Iron Welded Wire Mesh (also known as plain carbon steel welded wire fabric) is engineered to deliver exceptional structural integrity and mechanical strength. Unlike galvanized variants, raw black iron wire mesh provides a cost-effective, high-bond alternative that integrates seamlessly into concrete matrices, industrial filters, and machinery guards where direct coatings or embedding are required.
Unmatched Structural Integrity & Precision Engineering
We utilize cutting-edge microprocessor-controlled resistance welding lines. This advanced methodology guarantees that each longitudinal and transverse wire intersection is fused under precise pressure and heat. The result is a perfectly flat panel or uniform roll with absolute zero loose joints, even when cut into custom shapes or exposed to heavy structural stress. It provides maximum shear strength for demanding building infrastructure projects.
Versatile B2B Applications across Global Industries
- Concrete & Construction Reinforcement: Distributes thermal and structural load evenly in structural slabs, airport runways, and roadway pavements.
- Industrial Sieving & Filtering: Serves as highly durable backing mesh for multi-layer industrial fluid filtration and heavy material sorting.
- Safety Guards & Enclosures: Ideal for fabricating high-impact resistant warehouse partitions, window grilles, and heavy machine protective screens.
- Agricultural Farming Mesh: Extensively utilized for breeding cages, secure perimeter security barriers, and livestock enclosures.
Technical Specifications & Standard Configurations
Visual Guide: Complete Range of Welded Wire Mesh Opening Size Specifications (1/4″ to 8″)
| Specification Profile | Mesh Size (Inch) | Mesh Size (Metric) | Wire Gauge (BWG) / Rod | Wire Diameter (mm) |
|---|---|---|---|---|
| Ultra Fine Micro Mesh | 1/4″ x 1/4″ | 6.35mm x 6.35mm | BWG 20 – 24 | 0.55mm – 0.90mm |
| Fine Grading Mesh | 1/3″ x 1/3″ | 8.46mm x 8.46mm | BWG 19 – 22 | 0.70mm – 1.00mm |
| Precision Filter Mesh | 3/8″ x 3/8″ | 9.52mm x 9.52mm | BWG 18 – 22 | 0.70mm – 1.20mm |
| Standard Fine Mesh | 1/2″ x 1/2″ | 12.7mm x 12.7mm | BWG 16 – 20 | 0.90mm – 1.65mm |
| Intermediate Screen Mesh | 5/8″ x 5/8″ | 15.87mm x 15.87mm | BWG 14 – 18 | 1.20mm – 2.10mm |
| Standard Screen Mesh | 3/4″ x 3/4″ | 19.05mm x 19.05mm | BWG 13 – 16 | 1.65mm – 2.40mm |
| Medium Industrial Mesh | 1″ x 1″ | 25.4mm x 25.4mm | BWG 12 – 16 | 1.65mm – 2.77mm |
| Euro Standard Mesh | 1.3″ x 1.3″ | 33.0mm x 33.0mm | BWG 10 – 14 | 2.10mm – 3.40mm |
| Heavy Duty Fencing Mesh | 2″ x 2″ | 50.8mm x 50.8mm | BWG 8 – 12 | 2.77mm – 4.19mm |
| Rigid Enclosure Mesh | 3″ x 3″ | 76.2mm x 76.2mm | BWG 4 – 8 | 4.19mm – 5.16mm |
| Structural Reinforcement | 4″ x 4″ | 101.6mm x 101.6mm | Heavy Bar / Rod | 4.00mm – 6.00mm |
| Large Span Infrastructure | 8″ x 8″ | 203.2mm x 203.2mm | Heavy Rod | 5.00mm – 8.00mm |
Technical Specifications & Standard Configurations
Frequently Asked Questions (FAQ)
Q1: What is the primary difference between Black Iron Welded Wire Mesh and Galvanized Mesh?
A1: Black iron mesh is constructed from raw, ungalvanized carbon steel wire. It does not feature a zinc coating, making it highly cost-effective and offering superior binding adhesion with concrete. Galvanized mesh has better atmospheric rust resistance but is typically more expensive and has lower weld-shear parameters compared to premium raw black wire.
Q2: How do you prevent raw carbon steel wire mesh from rusting during ocean transport?
A2: We mitigate moisture exposure by wrapping the rolls and sheets tightly inside custom anti-humidity barrier sheets, double-layer industrial plastic packaging, and wooden crates containing active desiccant packs. This preserves the plain metal surface throughout transit.
Q3: Can your black iron welded mesh panels be customized for unique construction sizes?
A3: Yes, absolutely. We offer extensive custom-tailored fabrication capabilities. Our manufacturing facility can configure wire gauges ranging up to 6.0mm and manipulate panel dimensions up to 2.4 meters wide by 6 meters long to align perfectly with your infrastructure blueprints.
Q4: What surface post-treatments can be applied to this plain steel welded fabric?
A4: Since the raw black wire mesh serves as an adaptable base element, it can be post-processed via hot-dip galvanizing, PVC powder fluidization coating, or electrostatic spray painting depending on your project’s environmental exposure limits.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your black iron welded wire mesh procurement costs? Partner with us to enjoy premium high-tensile, industrial-grade quality compliant with ASTM A1064/BS 4482 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality and weld-strength testing samples available for your local engineering project or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated multi-spot welding production lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with reinforced pallets to prevent transit damage.
