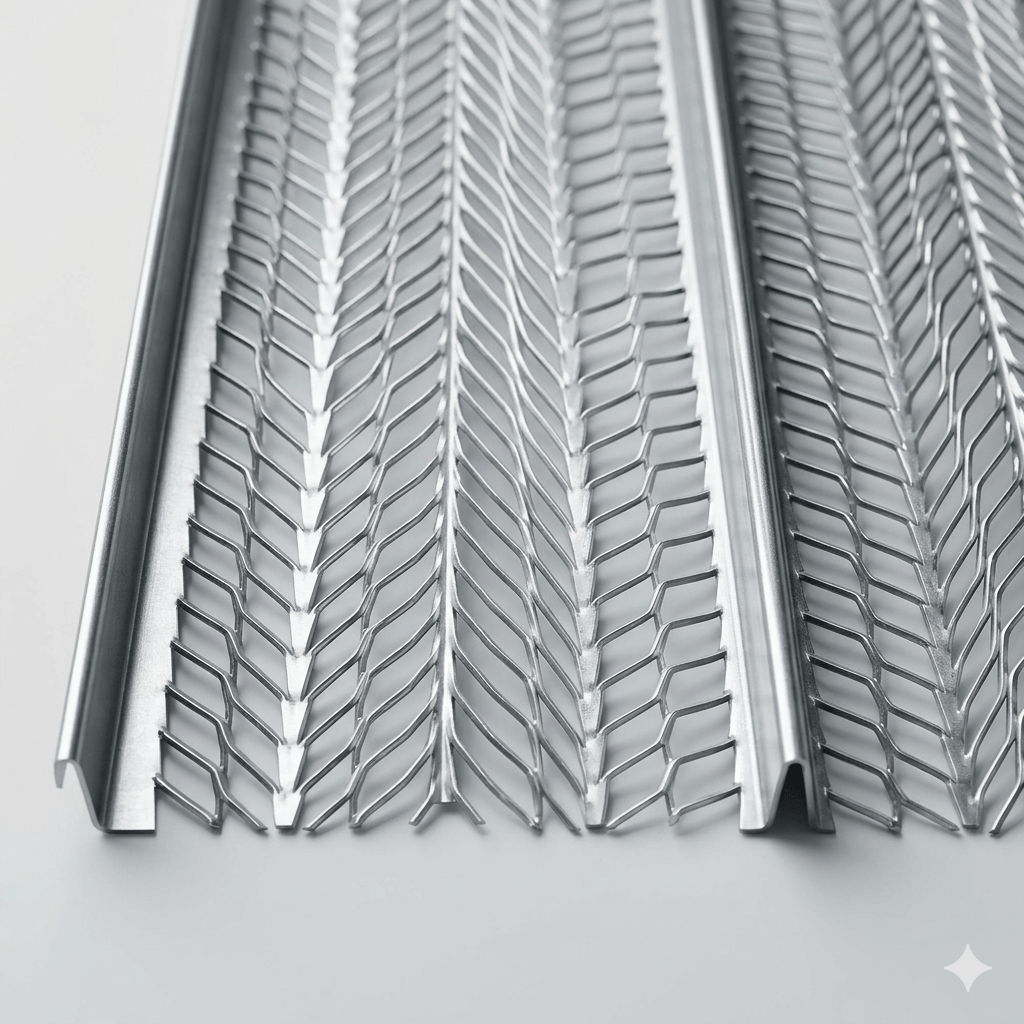

Premium 1/8″ Rib Lath for Precision Plastering & Stucco Systems
Our industrial-grade 1/8″ Rib Lath sets the benchmark for high-efficiency interior plastering and exterior stucco reinforcement. Fabricated through an advanced continuous expanding and stamping matrix from prime hot-dipped galvanized steel coils, this structural lath incorporates integrated 1/8-inch low-profile ribs. It provides B2B construction material distributors and global drywall sub-contractors with a highly stable foundation that prevents cracking while optimizing overall chemical coat metrics on large-scale commercial real estate developments.
Why International B2B Buyers Source Our 1/8″ Flat Rib Lath
Substantial Material Savings: The ultra-low 1/8-inch rib architecture allows plasterers to achieve a smooth, monolithic surface with a minimal aggregate layer, directly cutting down material costs per square meter.
Extended Stud Spacing Profile: Thanks to the continuous reinforcement lines of the flat ribs, this mesh can easily span wider spaces between timber or steel framing studs compared to standard diamond mesh.
Flawless Slurry Mechanical Key: Precision herringbone openings securely embed wet gypsum or stucco matrix, dropping messy on-site dropping waste to negligible rates under 2%.
Advanced Mechanics of Low-Profile Stiffening Ribs
The engineering advantage of deploying our specialized 1/8″ Rib Lath lies in its targeted flexural cross-sectional stiffness. In high-end commercial interiors, thick plaster coating adds immense dead weight to suspended framing networks. Standard plain mesh lacks the necessary structural bending resistance, causing it to push back or belly outward under trowel pressure. Our flat micro-rib profile eliminates this dynamic buckling problem entirely.
When plaster slurry is machine-pumped or manually applied, the herringbone slitted pattern generates a controlled, interlocking grip. This chemical-mechanical synergy encapsulates the zinc-coated steel strands fully inside the core. The steel rib acts as an anti-vibration stabilizer that effectively absorbs concrete building settling shifts, thermal expansion movements, and structural shear strains without revealing fine hairline surface finish cracks.
Technical Specifications & Export Standard Dimensions
| Model SKU | Steel Gauge / Thickness (mm) | Rib Height (inch / mm) | Rib Center Space (mm) | Standard Sheet Size | Weight Rating (lbs/yd²) | Zinc Coating Grade |
|---|---|---|---|---|---|---|
| FRL-18-275 | 0.25 mm – 0.28 mm | 1/8″ (3.17 mm) | 75 mm / 3.0″ | 27″ x 96″ / 600x2500mm | 2.75 lbs/yd² | G60 / Z120 Min |
| FRL-18-340 | 0.30 mm – 0.35 mm | 1/8″ (3.17 mm) | 75 mm / 3.0″ | 27″ x 96″ / 610x2438mm | 3.40 lbs/yd² | G60 / G90 Heavy |
| FRL-18-M35 | 0.35 mm | 1/8″ (3.17 mm) | 100 mm / 4.0″ | 600 mm x 2500 mm | Custom Metric | Z180 / Z275 Max |
| FRL-18-M40 | 0.40 mm | 1/8″ (3.17 mm) | 100 mm / 4.0″ | 600 mm x 3000 mm | Custom Metric | Z180 / Z275 Max |
Primary B2B Construction Applications
- Suspended Ceiling Frameworks: Forms an ultra-rigid plaster bedding floor for expansive interior ceiling profiles in luxury hospitality installations.
- Lightweight Wall Partitions: Acts as an anti-crack steel skeleton covering metal studs to guarantee stable, crack-free partition boundaries.
- Mismatched Material Intersections: Overlays across joint seams between rough masonry and smooth concrete columns to buffer uneven structural strain lines.
- Complex Geometry Encapsulations: Easily hand-shaped over structural curved columns, bulkheads, and fireplace surrounds where 3/8″ deep rib panels are too rigid to contour.
Global Export Logistics & Packaging Standards
As a seasoned manufacturing exporter serving global construction suppliers across North America, the UK, and Oceania, our logistics department guarantees that our packing systems are fully optimized for maritime container shipping. Since 1/8″ rib lath sheets feature low-profile ribs, they are precision-nested face-to-face in alternating orientations. This technique reduces dead air spaces, driving up your overall container load capacity and dropping ocean freight costs per square meter.
To eliminate edge-crushing or mesh bending under intense container shifts, each bundle block is braced with rigid reinforced cardboard corner armor and strapped under high hydraulic tension onto heavy fumigated wooden or steel pallets. The entire cargo is vacuum-enveloped in heavy-duty polyethylene waterproof film loaded with moisture absorbers, ensuring complete protection from saline marine air rust. We execute fully compliant FOB, CIF, CFR, and door-to-door DDP international trade shipments.
Frequently Asked Questions (FAQ)
Q1: Why should I choose 1/8″ Rib Lath instead of standard Diamond Metal Lath?
A1: The continuous 1/8″ longitudinal ribs provide significantly higher flexural strength than flat diamond lath. This extra rigidity prevents the mesh from sagging between joists or studs under the heavy weight of wet plaster, allowing you to widen your framing support centers and save on channel steel or timber costs.
Q2: Does your 1/8″ Rib Lath comply with North American ASTM C847 standard specification criteria?
A2: Yes, absolutely. Our export-oriented production lines are specifically calibrated to manufacture 2.75 lbs/yd² and 3.40 lbs/yd² weights in standard 27″ x 96″ sizing profiles that fully comply with ASTM C847, ASTM A653, and international CE building materials directives.
Q3: How does the self-furring feature of your flat rib mesh improve jobsite plastering?
A3: The 1/8-inch rib structure slightly raises the expanded herringbone mesh plane away from solid wood, brick, or concrete wall backdrops. This built-in gap ensures that plaster paste flows completely behind the steel strands to thoroughly encapsulate the lath, providing an ironclad mechanical lock without requiring separate furring clips.
Q4: What is your minimum factory order quantity (MOQ) and lead time for standard 2.75 lbs and 3.40 lbs weights?
A4: For standard US dimensions (27×96 inches), we maintain an abundant warehouse inventory for immediate shipment with zero MOQ limits. For custom metric lengths, specified sheet widths, or heavy Z275 zinc coating requests, our factory run MOQ is 2,000 sheets, with an ultra-fast production cycle of only 10 to 14 days from deposit clearance to port delivery.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your 1/8″ Rib Lath procurement costs? Partner with us to enjoy premium bright, smooth-finish, and perfectly flat quality compliant with international plastering and stucco reinforcement standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, dimensional flatness, and rib-rigidity testing samples available for your local concrete formwork, joint construction project, or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated heavy-duty expanding and 1/8″ flat-rib profiling lines ensure prompt manufacturing and on-time shipment of your 1/8″ rib lath.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage, rib distortion, and bundle bending.
